※LEAD EDGE FEEDER UNIT

LEAD-EDGE FEEDING SYSTEM

1. Can measure the corrugated cardboard thickness, can adjustment feeding gap automatic
2. 7.5KW high pressure centrifugal fans, according to the cardboard warping degree of frequency control pressure, to ensure warp cardboard or thin cardboard high-speed accurate transmission.
3. Left and right side baffle position electrically adjustable, screw-driven.and can remember by computer.
4. Front baffle adjust the position of the upper and lower intervals synchronization by manual.
5. Skip-feeding devices, could select skip-feeding according to needs. To ensure that large-scale cardboard can also be processed.
6. Install 7” touch screen, could automatically display the production quantity, production speed, and set the production quantity and every operating.
7. Slotting part is equipped with the interlock switch, to achieve the emergency stop, stop feeding or feeding.

MACHINE SEPARATION & COMBINATION

1. Button switches electrically control the separation and combination of machine, with automatic alarm device, continuously alarm while moving, to ensure safety of operators.
2. Air pressure interlocks, lock securely, conveniently and accurately.
3. Machine clutch drive shaft is equipped with overload protection device.
4. Active self-locking function: if unit is not completely locking state the host cannot start, to ensure the safety of machine and operator; while host normal working conditions, the unit clutch function is automatically lock, to avoid machine misuse  and personal injury.

DUST-REMOVAL SYSTEM

1. Adopt brush cleaning device, equipped with strong Negative pressure suction fan, clearing the dust, paper scrap or other waste, to improve printing quality.

※PRINTER UNIT

 PRINTING ROLLER

1. With printing plate, outer diameter φ408mm
2. High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running
3. Roller horizontal direction and circumferential direction with datum line, convenient for align plate
4. Fixed coil axis, suitable for standard hanging slats, realize rapid change plate
5. Electric 360° adjust printing roller, automatic digital display adjustment, remember store digital.
6. Installed with foot switch to control plate roller reversing, convenient change plate
7. Auto-zero function, order memory.
8. Printing roller plate-change and fix-plate function.
9. Printing roll axial is adjusted left and right by manual, maximum movement left and right 10mm,auto-zero instruction.

HEATING UNIT:

1. Include infrared ray heating device according ITALY technical

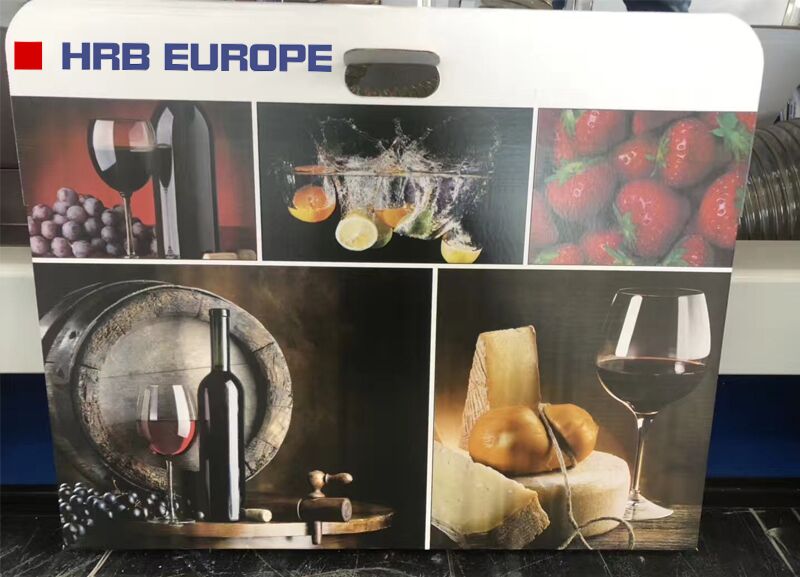

2. Can heating cardboard after print, for more high defination printing quality

VACUUM SUCKING TRANSPORT UNIT:

1. Use Italy technical sucking transport device

※Slotting Unit

1. Angle cutter made by ITALY model, cutting ring use Rubber materils
2. Computer auto control cardboard size by Linear guideway
3. 6 shaft with rubber pre-creasing line, creasing line, slotter line
4. The first pressure line round, after preloading cardboard not easily crush
5. The above press round Urethane appearance package, will not damage the cardboard
6. The slotter knife stock use traverse mechanism, screw with linear guide, to move more flexible and precise

※Die-cutting Unit

1. SERVO MOTOR use BOSCH REXROTH brand
2. Rubber roller mechanical spiral commutation 40mm move about horizontal structure
3. Die-cutter phase, computer and electric digital control
4. Horizontal phase, computer and electric digital control, range ±5mm
5. Rubber roller and die roller gap use computer and electric digital control,
6. Adjust the transfer roller use computer and electric digital control,

※GLUER LINE UNIT

automatic gluing unit

1. The gluing machine adopts high quality steel welding carefully processed and assembled
2. The gluing machine is used by linkage the die cutting unit or slotting unit of printing machine, the electrical control system is communication with printing machine,.When printing machine running , the gluing machine also running.they are one system.
3. Automatically provide the glue by glue gun, circulation glue, never break glue, no work to add glue, save time and effort.
4. Stainless steel coated glue wheels,, corrosion resistance, wear resistance, uniform glue, glue saving and use glue quantity is about one third of the amount of artificial glue.
5. folding department is equipped with adjustable line pressing wheel, make folding cartons more smoothly, glue more beautiful and accurate.
6. Count unit,stack the carton and correction,putout safety and smoothly, accurate without error, digital control, simple operation, input without stopping machine.
7. Adopt 8 servo motor with MITSUBISHI brand of Japan

COUNTER EJECTOR

1. Pneumatic paper pushing structure to push out the counted carton box neatly.
2. Back baffle can be adjusted electrically as per the cardboard width
3. Moving parts adopts imported ball screw and linear guides with reliable stability.
4. Equipped with paper pressure device, upper and down transmission is the same speed ensures carton box neatly, the height can be adjusted electrically as per the different quantity of each pack of the carton box.
5. The left and right position of the discharge part can be adjusted, which
6.  ensures the carton box always falling down to the middle part of the machine.

※MAIN TECHNICAL PARAMETERS
